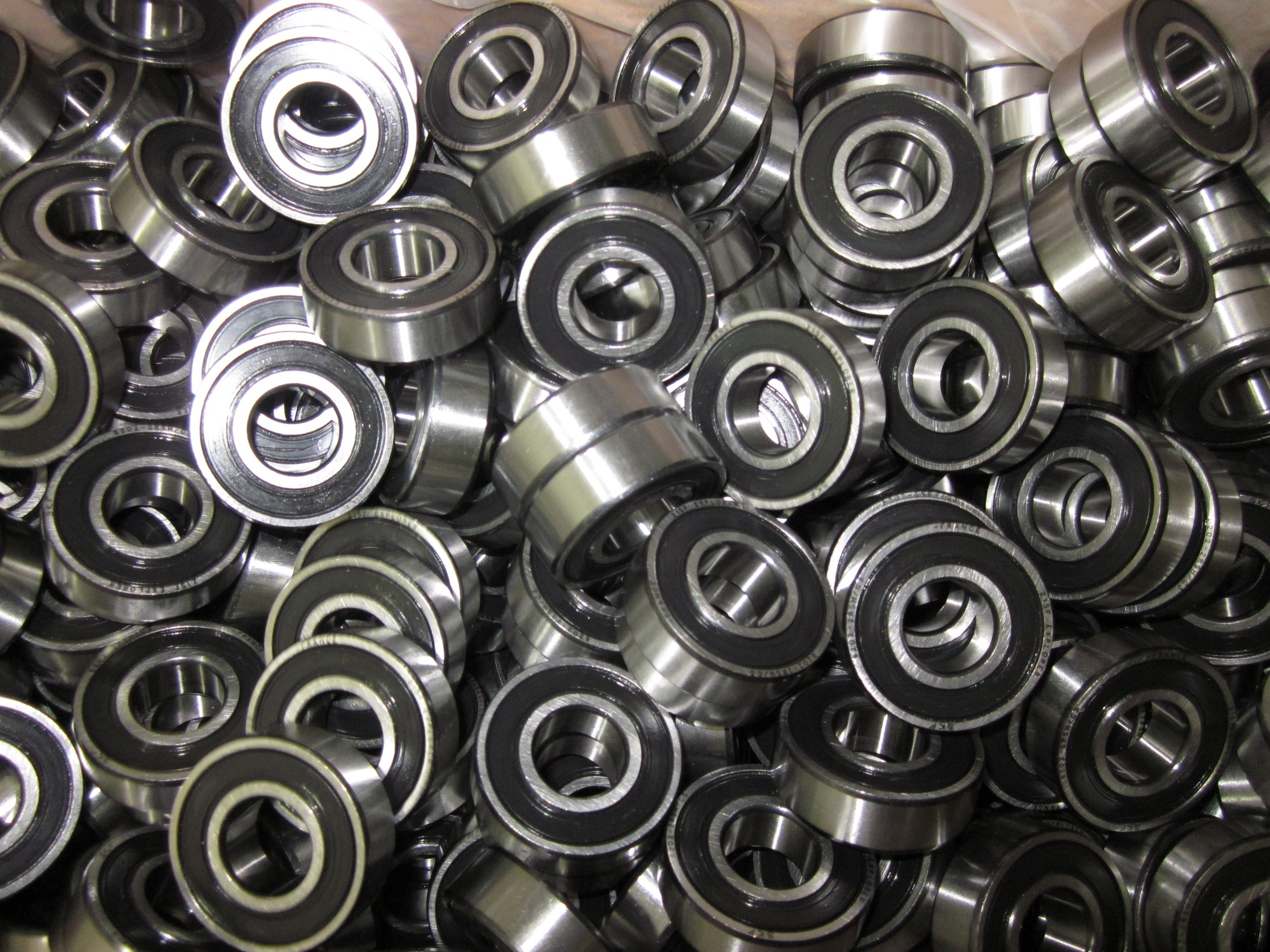

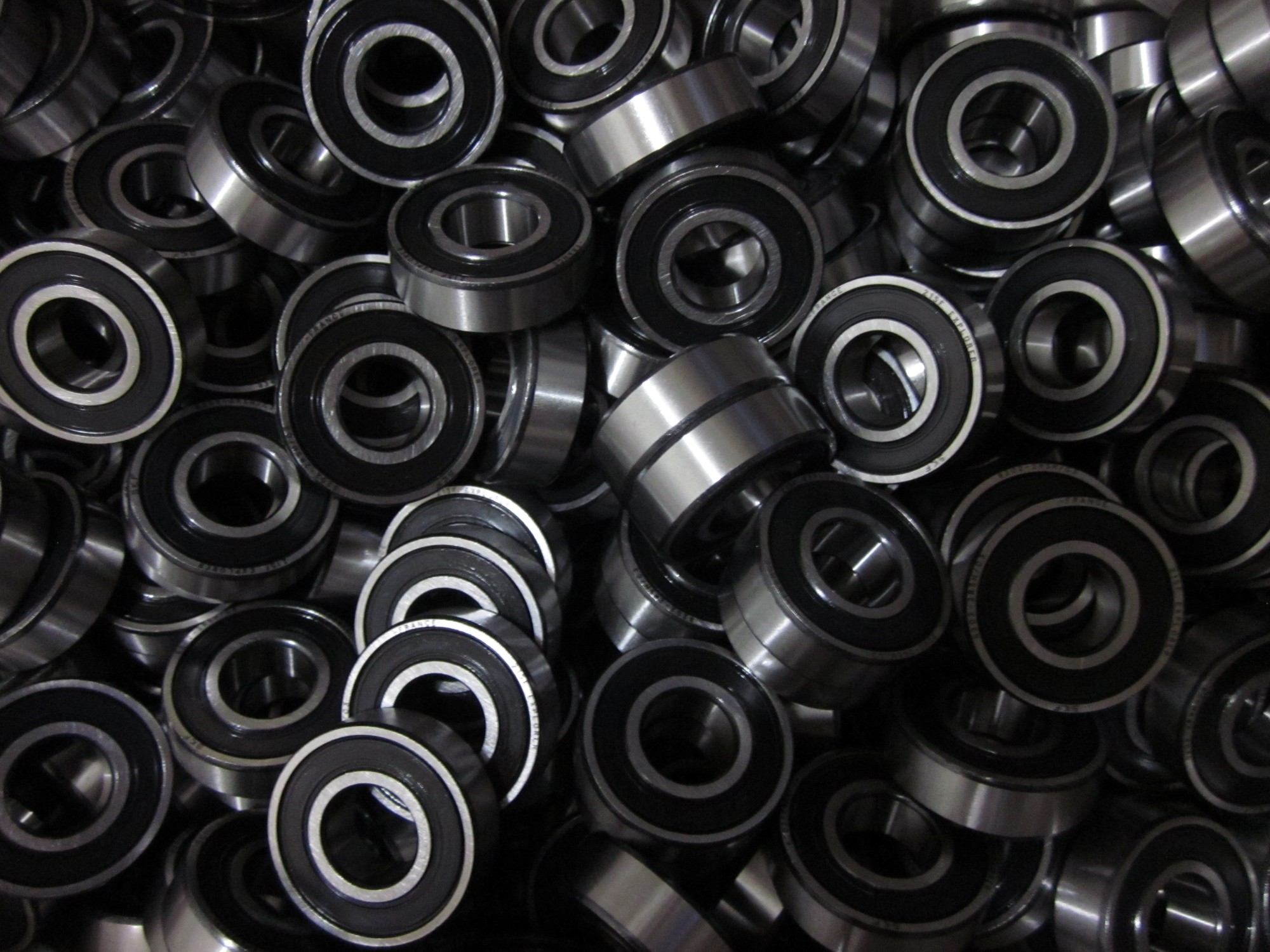

6302 2rs Deep Groove Ball Bearing

Description

6302 2rs Deep Groove Ball Bearing To Fit A 12mm Shaft Precision Low Noise

Bearing deep groove ball, Description,

Single row deep groove ball bearings are available in two designs: open or closed seals (with seals or dust caps). Open bearings can also be fitted with seals or dust caps, and generally have grooves on the side of the inner ring.

Deep groove ball bearing axial load, Specification,

d	15mm
D	42mm
B	13mm
d1	24.5mm
D2	36.8mm
r1,2 min	1mm
da min	20mm
da max	24mm
Da	37.5mm
ra max	1mm
C	9.95kN
C0	5.4kN
Pu	0.232
Kr	0.035
f0	12.3
Weight	0.081kg

v groove sealed ball bearings, Features,

Z2V2 motor equipment dedicated low noise.

More model bearings,

Bearing				Speed Rating	Speed Rating	Weight
	d(mm)	D(mm)	B(mm)	Grease	Oil	(lb)
				(RPM)	(RPM)
6302	15	42	13	16000	20000	0.082
6303	17	47	14	15000	19000	0.115
6304	20	52	15	14000	17000	0.144
6305	25	62	17	9,500	13,000	0.52
6306	30	72	19	9,000	12,000	0.8
6307	35	80	21	8,500	10,000	1
6308	40	90	23	7,800	9,200	1.4
6309	45	100	25	6,700	8,000	1.8
6310	50	110	27	6,400	7,500	2.4
6311	55	120	29	5,800	6,800	3.02
6312	60	130	31	5,400	6,300	3.81
6313	65	140	33	4,900	5,800	4.7
6314	70	150	35	4,600	5,400	5.73
6315	75	160	37	4,300	5,000	6.84
6316	80	170	39	4,000	4,700	8.13
6317	85	180	41	3,800	4,500	9.53
6318	90	190	43	3,600	4,300	10.8
6319	95	200	45	3,400	4,100	12.5
6320	100	215	47	3,200	3,950	15.4
