Description

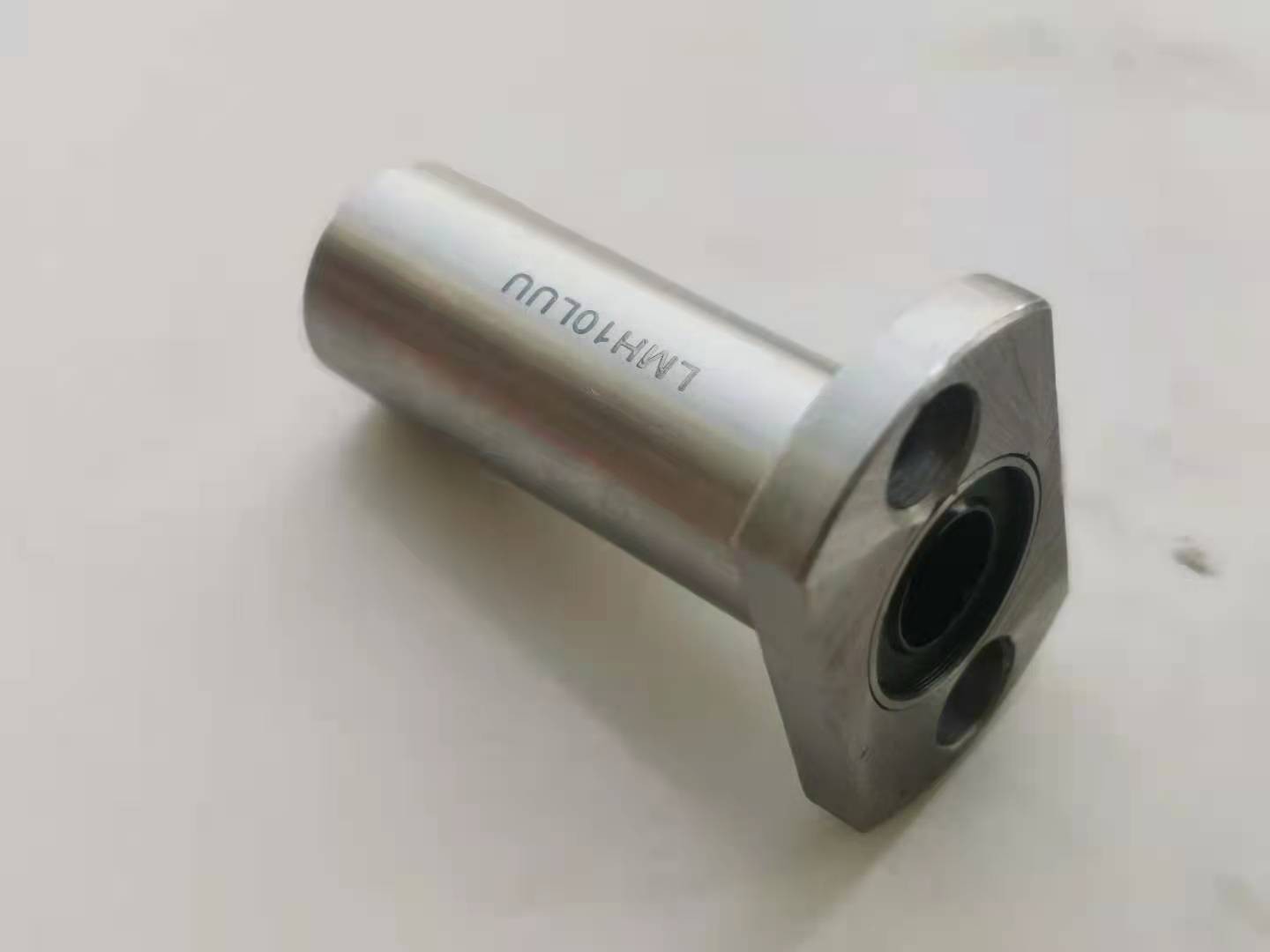

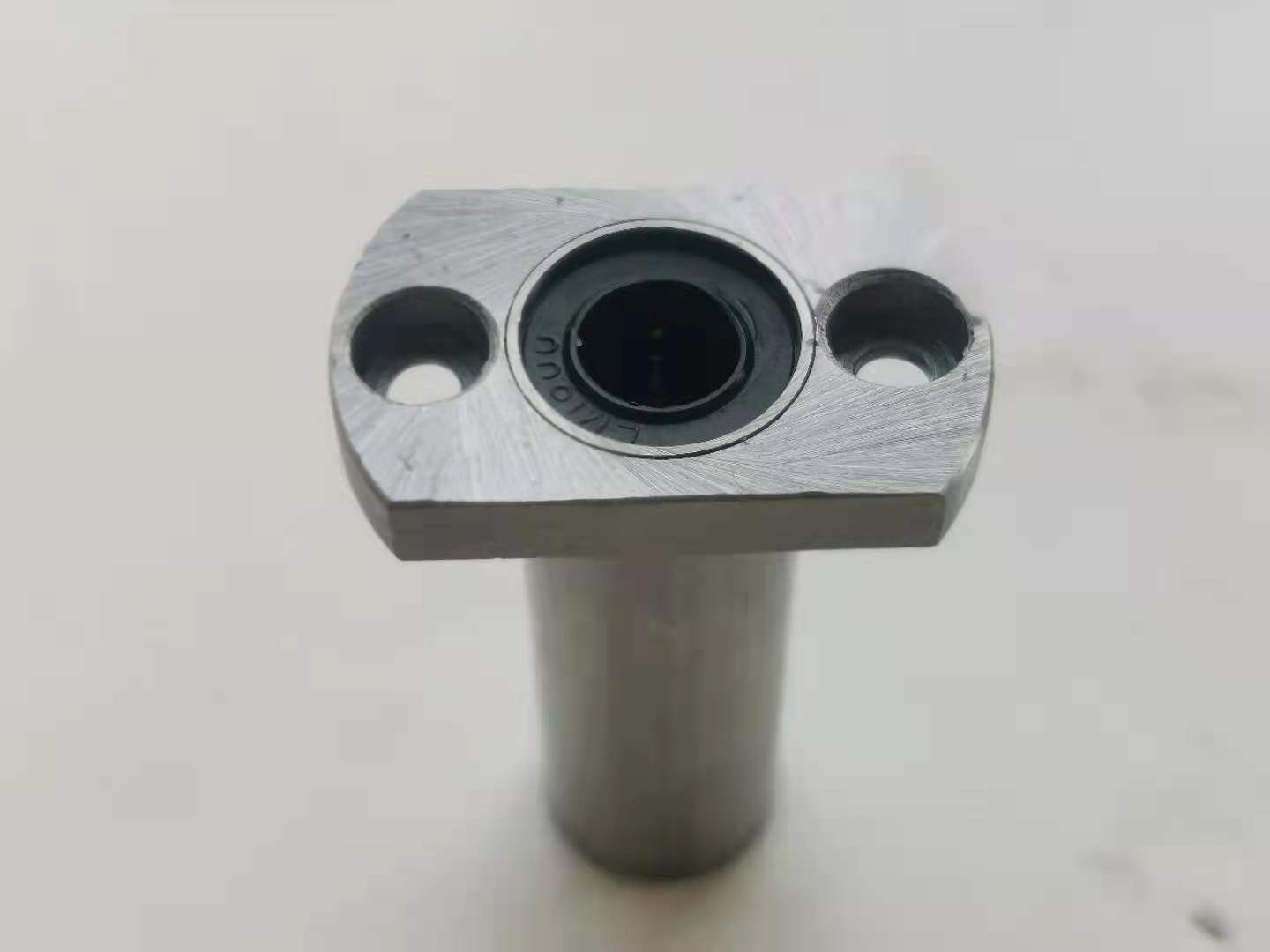

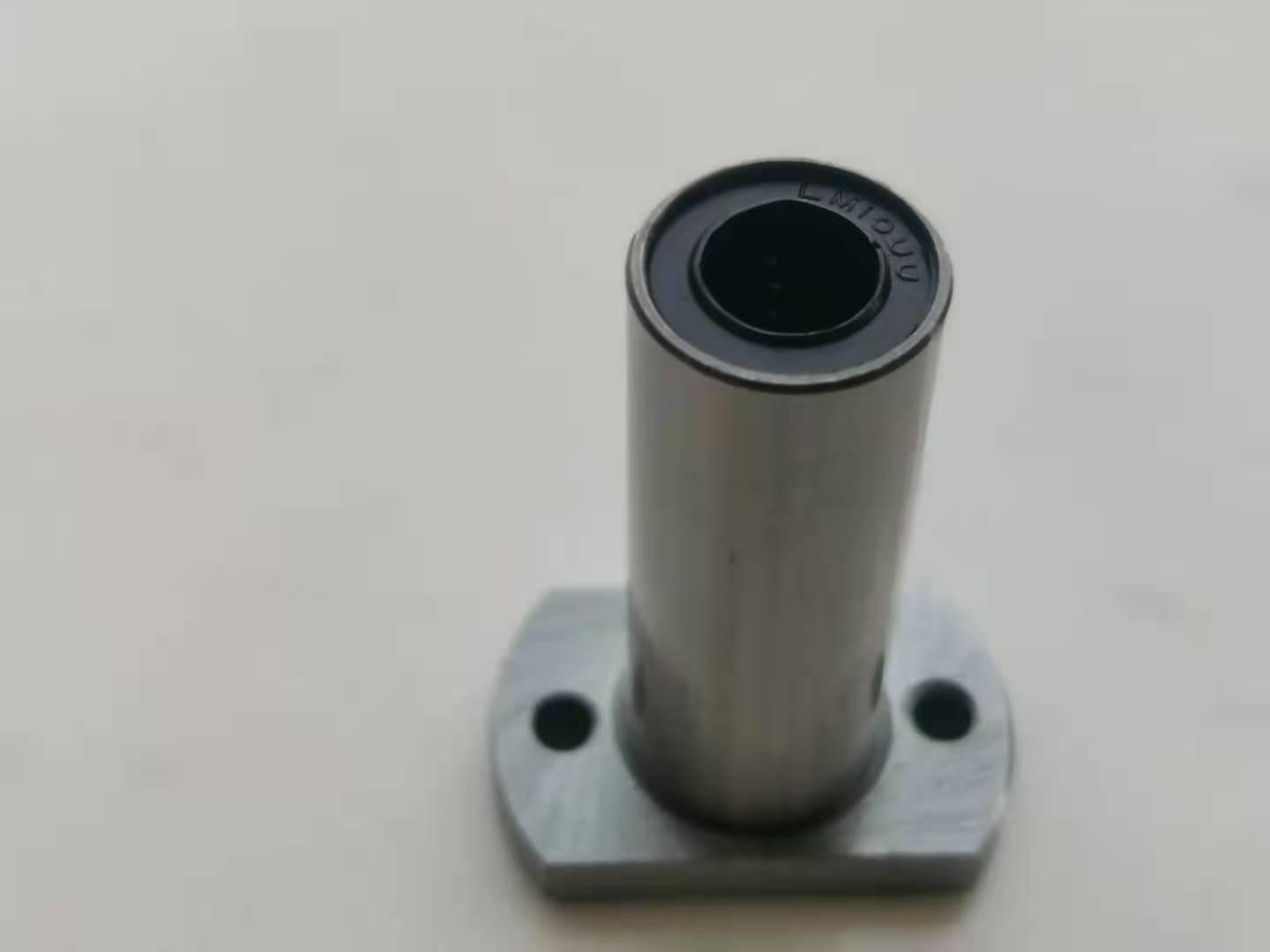

Dust Proof Linear Plain Bearing Stable Performance For Medical Equipment
MCBB BEARING OFFER YOU THIS
1. Fast quotation, Fast shipment.
2. Multi-choose for you choosing.
3. Supporting sample purchase, 1pcs is ok for us.
4. Supporting payment online or directly pay in RMB.
MCBB BEARING Deserve you try
1. Multi choose on delivery time to save the shipment cost.
2. Rich experience on customs clearnace dcouement.
3. Supporting 7days refund in case of bad quality.
Dust Proof Linear Plain Bearing Stable Performance For Medical Equipment
| standard model | rows of ball | open model | rows of ball | Adjustable model | rows of ball | Rated load C(N) | Rated load C.(N) | ID |
| LM5UU | 4 | - | - | - | - | 167 | 206 | 5 |
| LM6UU | 4 | - | - | LM6UUAJ | 4 | 200 | 260 | 6 |
| LM8SUU | 4 | - | - | LM8SUUAJ | 4 | 170 | 220 | 8 |
| LM8UU | 4 | - | - | LM8UUAJ | 4 | 260 | 400 | 8 |
| LM10UU | 4 | - | - | LM10UUAJ | 4 | 370 | 540 | 10 |
| LM12UU | 4 | LM12UUOP | 3 | LM12UUAJ | 4 | 410 | 590 | 12 |
| LM13UU | 4 | LM13UUOP | 3 | LM13UUAJ | 4 | 500 | 770 | 13 |
| LM16UU | 5 | LM16UUOP | 4 | LM16UUAJ | 5 | 770 | 1170 | 16 |
| LM20UU | 5 | LM20UUOP | 4 | LM20UUAJ | 5 | 860 | 1370 | 20 |
| LM25UU | 6 | LM25UUOP | 5 | LM25UUAJ | 6 | 980 | 1560 | 25 |
| LM30UU | 6 | LM30UUOP | 5 | LM30UUAJ | 6 | 1560 | 2740 | 30 |
| LM35UU | 6 | LM35UUOP | 5 | LM35UUAJ | 6 | 1660 | 3130 | 35 |
| LM40UU | 6 | LM40UUOP | 5 | LM40UUAJ | 6 | 2150 | 4010 | 40 |
| LM50UU | 6 | LM50UUOP | 5 | LM50UUAJ | 6 | 3820 | 7930 | 50 |
| LM60UU | 6 | LM60UUOP | 5 | LM60UUAJ | 6 | 4700 | 9990 | 60 |
According to the specification system:
It is divided into two series, namely LM and LME series. Its code name LM series is used in Asia, Southeast Asian countries, Japan, Korea, China and so on. In terms of metric size, the tolerance of the outer diameter of the linear shaft is generally h7.
The LME series is mostly used in Europe, the United States, Germany, Italy and other regions. In the inch size, there are also metric sizes, and the tolerance of the outer diameter of the linear shaft is generally g6. Two series of structural features, in addition to different sizes, different aperture tolerances, the structure is roughly the same.
According to shape:
1: Straight type (shape is like a cylinder, usually installed with a circlip, used for mounting small size)
2: Flange type (with flanges at the end or middle, can be installed with screws, flanges are generally round, square and trimmed)
3: Open type (shape is straight, there are axial slits on the outside, used for occasions requiring clearance adjustment, two types of large openings and small openings)
According to performance:
1: normal type (used for general performance requirements)
2: Super type (for long life and large load performance requirements)
