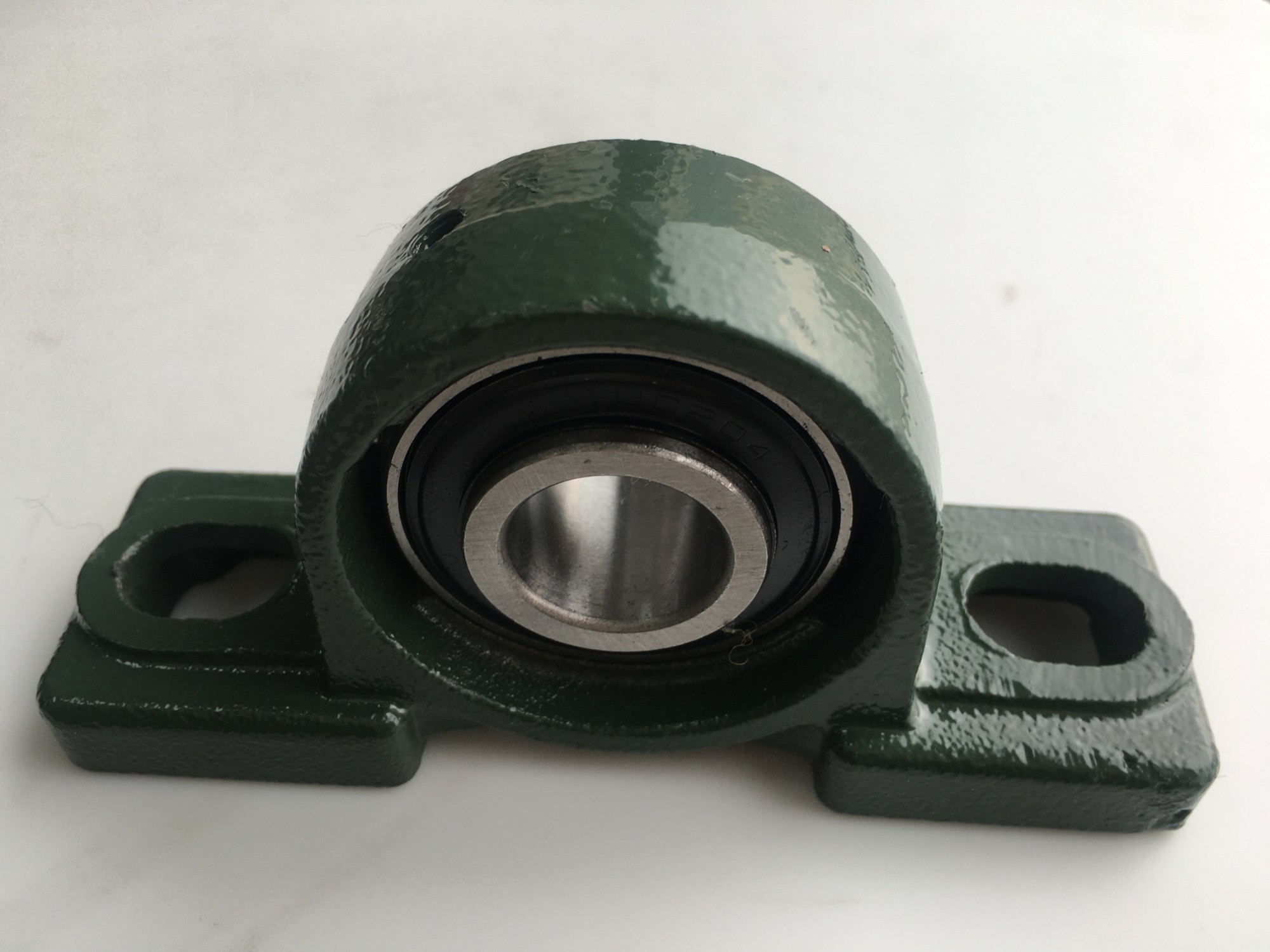

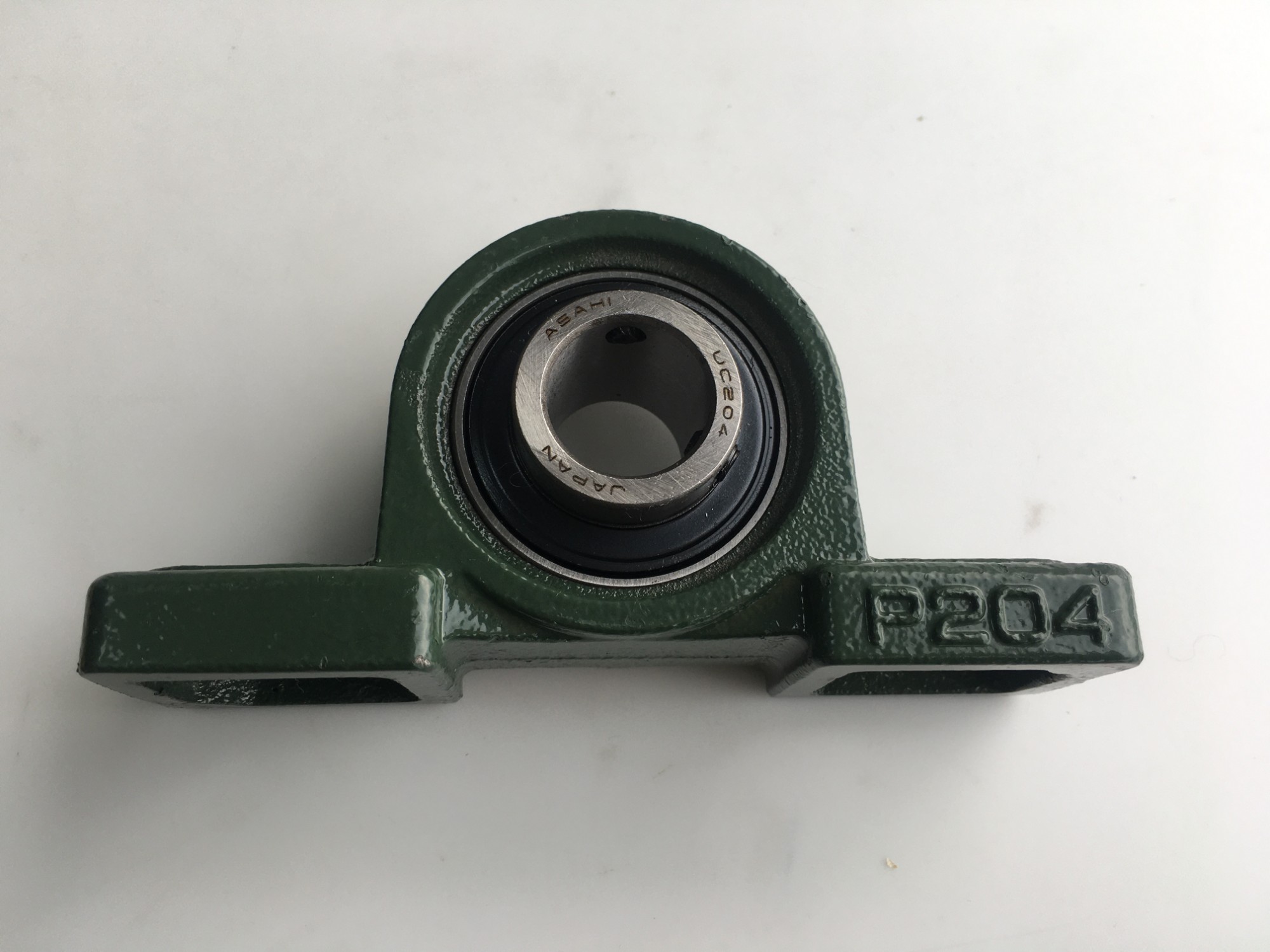

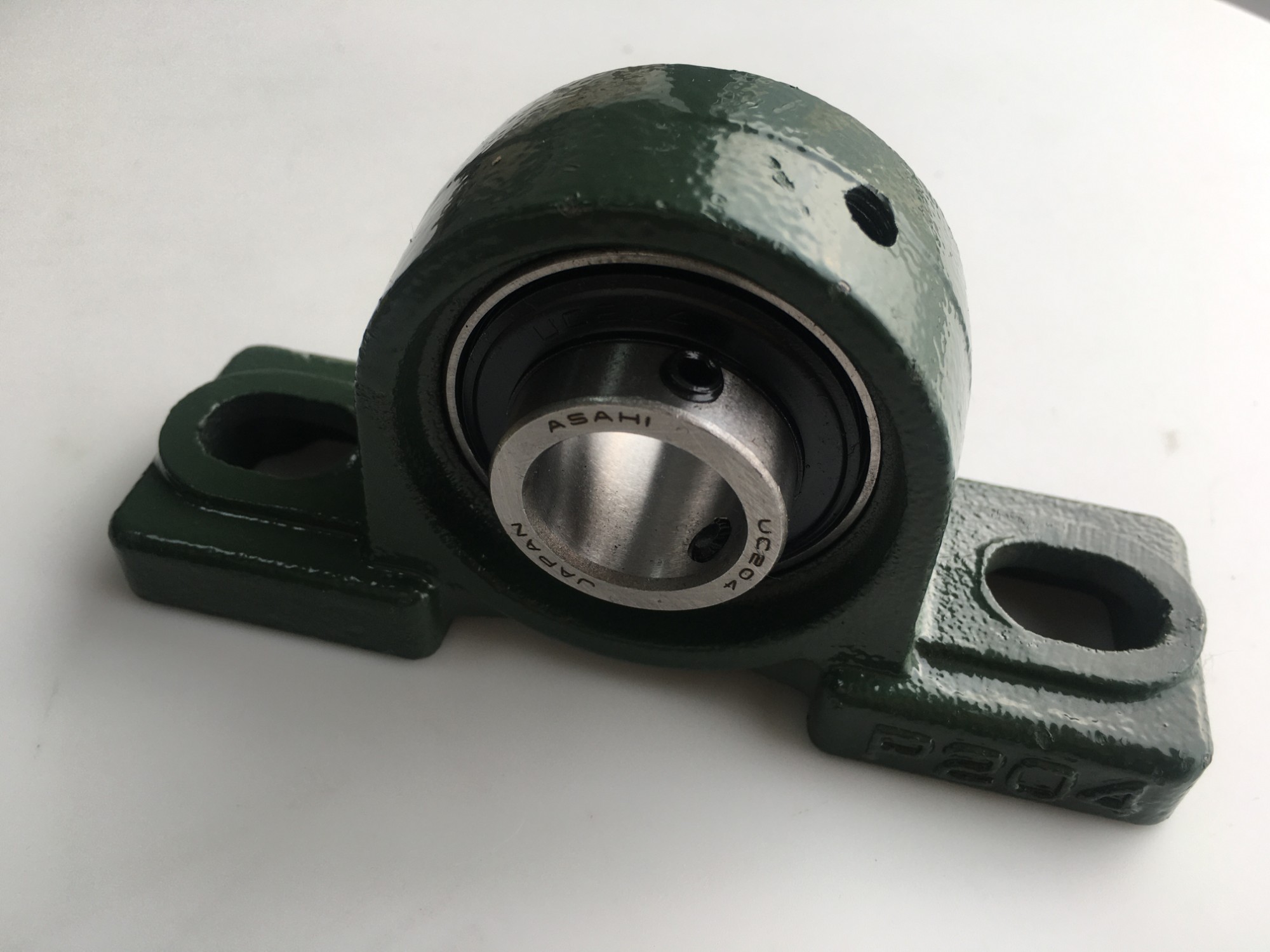

P204 Pillow Block Ball Bearing

Description

P204 Vertical Pillow Block Ball Bearing For Agricultural Machinery Harvester

UCP204 Installing pillow block bearings, Description,

1. Heavy-duty outer spherical UCP218 UC218 bearings Special bearings for agricultural machinery.

2. The outer spherical bearing has a spherical outer diameter surface, which can be fitted into the corresponding concave spherical surface of the bearing seat to play a self-aligning role.

3. UCP204 Components of Vertical Outer Spherical Bearings The outer ring of this bearing has a spherical outer diameter, which is matched with the concave surface of a ball bearing.

4. UCP204 ball bearing with housing is always availabe product to ship within only 7days.

Specification,

Bearing Model	ID	OD	Width	Weight
UCP218	90	96	356	-
UCP218-56	88.9000	101.6000	327.0000	13.000

UCP218 Pillar block bearings, Feature,

1. Double top wire fixed inner ring and bearing.

2. The seal ring is designed to prevent oil leakage.

3. Low friction coefficient, low noise and high speed.

4. Various structural forms, good versatility and interchangeability, withstand radial load

Why choose mcbb bearing?

Supporting directly RMB from abroad.

Lowes Pillow block bearings, More the other models for reference,

Model No.	Dimensions mm												Bolt Size	Bearing No.	Housing No.	Weight
Model No.	d	h	a	e	b	s1	s2	g	w	t	B	n	mm	Bearing No.	Housing No.	(kg)
UCP201	12	30.2	127	95	38	13	19	14	62	44.5	31	12.7	M10	UC201	P203	0.69
UCP202	15	30.2	127	95	38	13	19	14	62	44.5	31	12.7	M10	UC202	P203	0.69
UCP203	17	30.2	127	95	38	13	19	14	62	44.5	31	12.7	M10	UC203	P203	0.68
UCP204	20	33.3	127	95	38	13	19	15	71	48	34.1	14.3	M10	UC204	P204	0.66
UCP205	25	36.5	140	105	38	13	19	15	71	48	34.1	14.3	M10	UC205	P205	0.81
UCP206	30	42.9	165	121	48	17	20	17	84	53	38.1	15.9	M14	UC206	P206	1.24
UCP207	35	47.6	167	127	48	17	20	18	93	59.5	42.9	17.5	M14	UC207	P207	1.58
UCP208	40	49.2	184	137	54	17	20	18	100	69	49.2	19	M14	UC208	P208	1.89
UCP209	45	54	190	146	54	17	20	20	106	69	49.2	19	M14	UC209	P209	2.14
UCP210	50	57.2	200	159	60	20	23	21	113	74.5	51.6	19	M16	UC210	P210	2.66
UCP211	55	63.5	219	171	60	20	23	23	125	76	55.6	22.2	M16	UC211	P211	3.31
UCP212	60	69.8	241	184	70	20	23	25	138	89	65.1	25.4	M16	UC212	P212	4.9
UCP213	65	76.2	265	203	70	25	28	27	150	89	65.1	25.4	M20	UC213	P213	5.15
UCP214	70	79.4	266	210	72	25	28	27	156		74.6	30.2	M20	UC214	P214	6.2
UCP215	75	82.6	275	217	74	25	28	28	162		77.8	33.3	M20	UC215	P215	7.16
UCP216	80	88.9	292	232	78	25	28	30	174		82.6	33.3	M20	UC216	P216	8.1
UCP217	85	95.2	310	247	83	25	28	32	185		85.7	34.1	M20	UC217	P217	9.81
UCP218	90	101.6	327	262	88	27	30	33	198		96	39.7	M22	UC218
